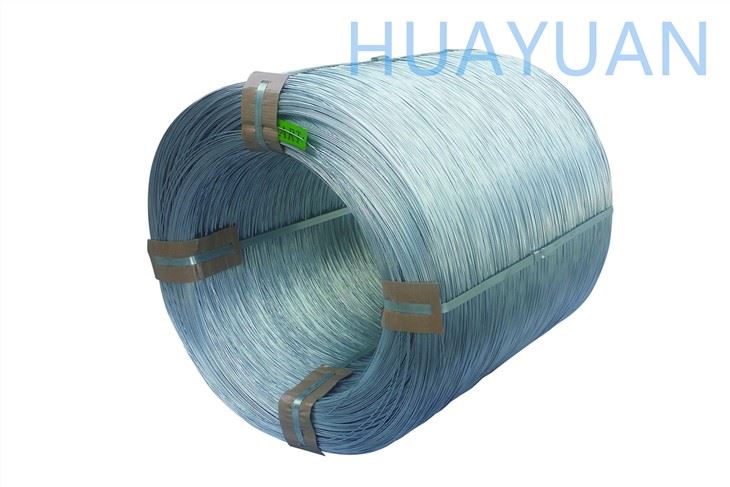

Tianjin Huayuan Metal Wire Products Co., Ltd. is one of the leading manufacturers and suppliers of 0.095' galvanized steel wire for chain link in China. With abundant experience, we warmly welcome you to buy 0.095' galvanized steel wire for chain link made in China here from from our factory. Welcome to view our website for more information.
Wire Specifications
Diameter Tolerances
Nominal Wire Diameter | Tolerance (mm) |
over 0.80mm up to and incl. 1.60mm over 1.60mm up to and incl. 2.50mm over 2.50mm up to and incl. 4.00mm over 4.00mm up to and incl. 5.00mm over 5.00mm up to and incl. 8.00mm | +/-0.03 +/-0.03 +/-0.03 +/-0.04 +/-0.04 |
Galvanised Coating Weight - AS3863; EN 10244; ASTM A 641
Wire Diameter | Wire Diameter | Minimum Ctg Mass Class 1 (g/m2) | Minimum Ctg Mass Class 2 (g/m2) | Minimum Ctg Mass Class 3 (g/m2) |
2.41 | 0.095 | 90 | 245 | 365 |
2.68 | 0.106 | 90 | 245 | 365 |
2.74 | 0.108 | 90 | 245 | 365 |
2.79 | 0.110 | 90 | 245 | 365 |
3.38 | 0.133 | 90 | 245 | 365 |
3.4 | 0.134 | 90 | 245 | 365 |
3.68 | 0.145 | 90 | 245 | 365 |
Tensile Strength (MPa)
The tensile strength is defined as the maximum load achieved in a tensile test divided by the cross sectional area of the wire test piece. The tensile strength range is 448-517 MPa; 551-620 MPa; 65000psi~75000psi;80000psi~90000psi
Steel Chemistry
A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.
Tensile Grade | % Carbon | % Phosphorus | % Manganese | % Silicon | % Sulphur |
Standard | 0.04~0.07 | 0.032 | 0.5 ~1.00 | 0.10~0.34 | 0.041 |
High | 0.1~0.18 | 0.035 | 0.5 ~1.10 | 0.10~0.35 | 0.045 |
Quality Control:
We use total quality control system. Every pieces of the raw material; semi-finished products and finished products are tested and recorded in file. The tracking record is used from final products to the very first beginning raw material steel factories.
Third Part like SGS is available for test control before shipment
Packing:
1) All the products are packed with seaworthy packing.
2) Customer’s special requirement for packing can be satisfied.
3) Air freight; sea freight and truck freight are all available.
Hot Tags: Galvanized steel wire for chain link, China, suppliers, manufacturers, factory, made in China
